XSG-15768

Request to update CIFP data

Closed

Airport Metadata Issue

Reported by:
 bbb ccc on November 15, 2024 10:26 AM

Assigned to:
 Philipp Ringler

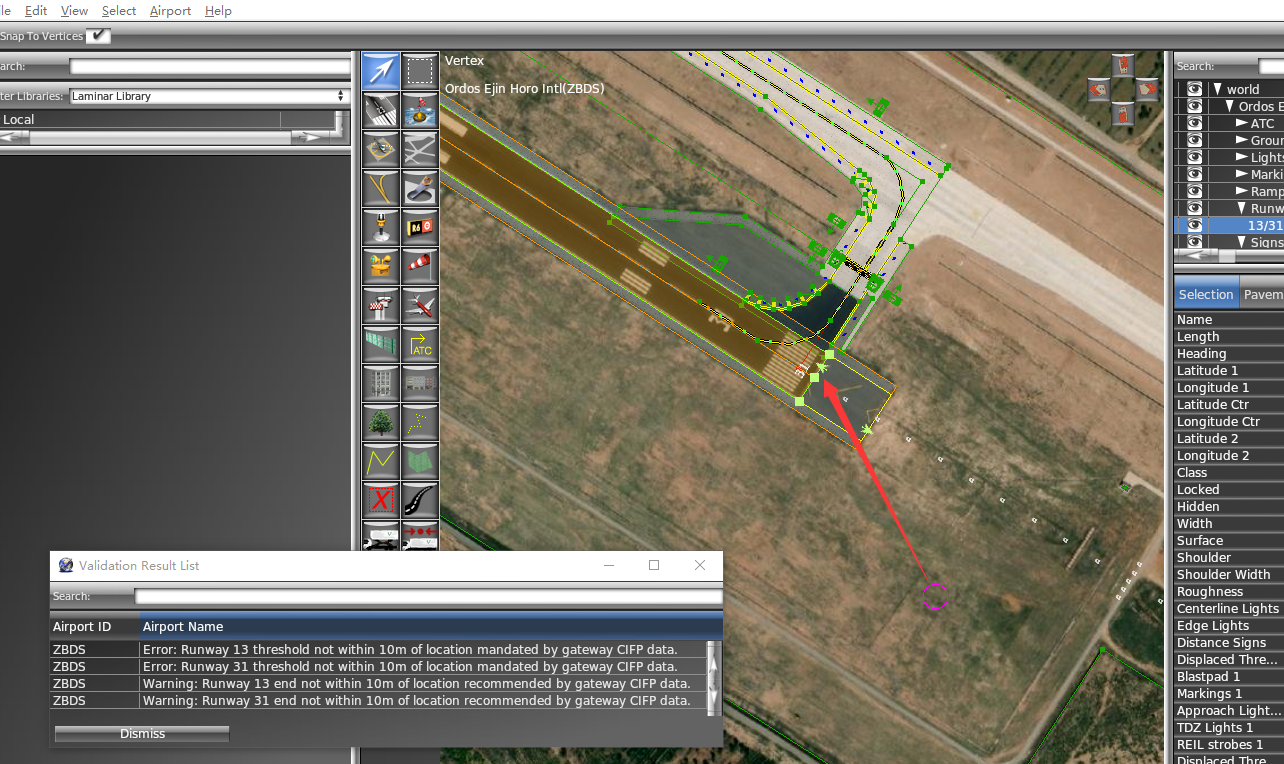

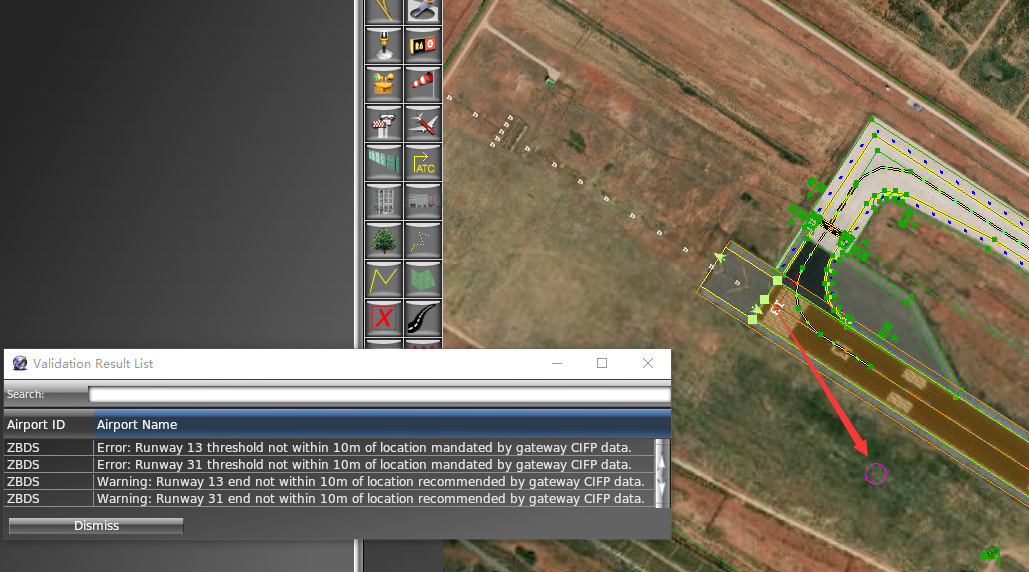

The Cifp data did not match the ESRI image runway position

  • bbb ccc November 15, 2024 10:26 AM


    1

  • Philipp Ringler January 23, 2025 9:07 PM

    CIFP data updated 2025-Jan-23

  • bbb ccc February 1, 2025 6:36 AM


    Still not fixed.

  • Philipp Ringler February 1, 2025 7:02 AM

    The data agrees with my real world EFB, so it agrees with data used by real airlines.

    This is in China? In China, satellite imagery will usually not match with WGS84 coordinates, as the coordinates of satellite data is shifted in China. See https://en.wikipedia.org/wiki/Restrictions_on_geographic_data_in_China#GPS_shift_problem

    For chinese airports, you need to ignore the image and match the WGS84 data. If you move the runway to match the image, the ILS approach will lead to airplanes landing in the grass, as the ILS data is also WGS84.

  • bbb ccc February 1, 2025 8:19 AM

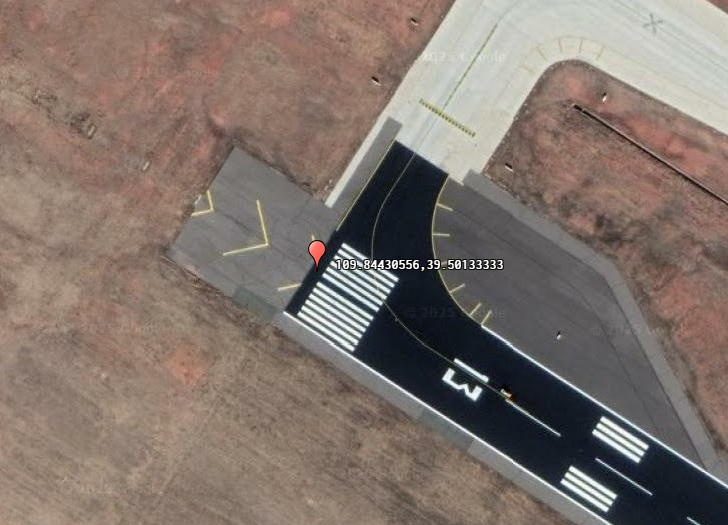

    I checked the MAPT point with the RNP approach and confirmed that the ESRI satellite image was fine.You can look at Mangshi airport(ICAO:ZPMS), the same problem.

Airport Identifier ZBDS
