XSG-5732
Alignment of both runway and ISL at SAME are wrong.
Scenery bug report
Reported by:
eduardo
on July 29, 2018 10:44 PM
Assigned to:
Robin Peel
Present default SAME, El Plumerillo, runway is misaligned. ILS heading is better aligned, although it still needs a retouch.

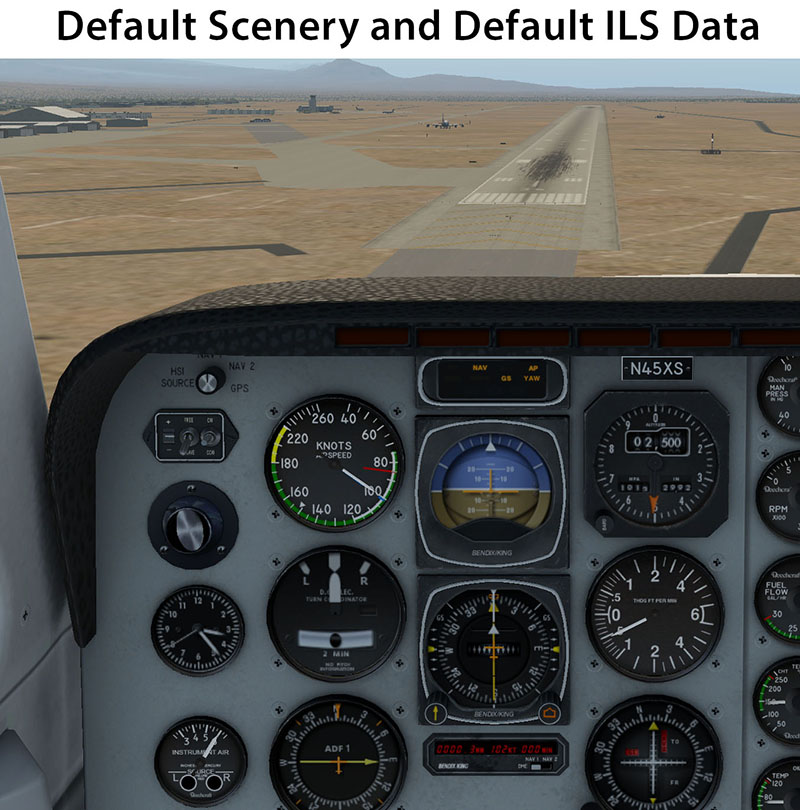

Flying ILS to RW36 at SAME with default scenery and default nav data (as of XP v11.25) gives the result shown on picture 01.
I already finished my own very detailed version of this airport for the Scenery Gateway based on Argentine air authority published data, but it is impossible to upload to the Scenery Gateway due to a validation error.

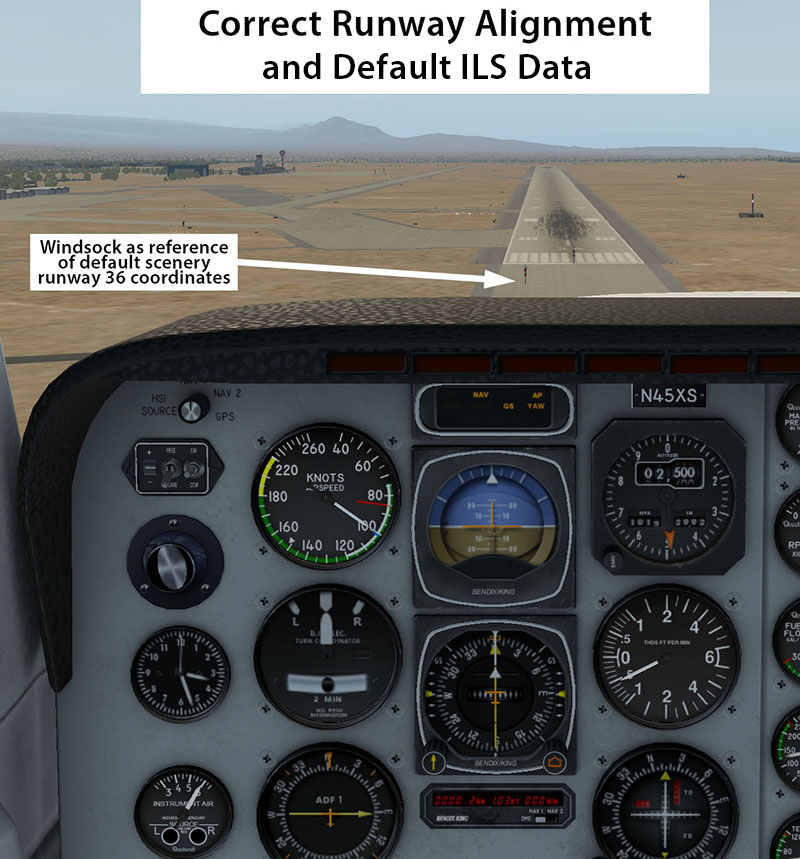

Flying the ILS to RW36 with my scenery and default data gives the result shown on picture 02.

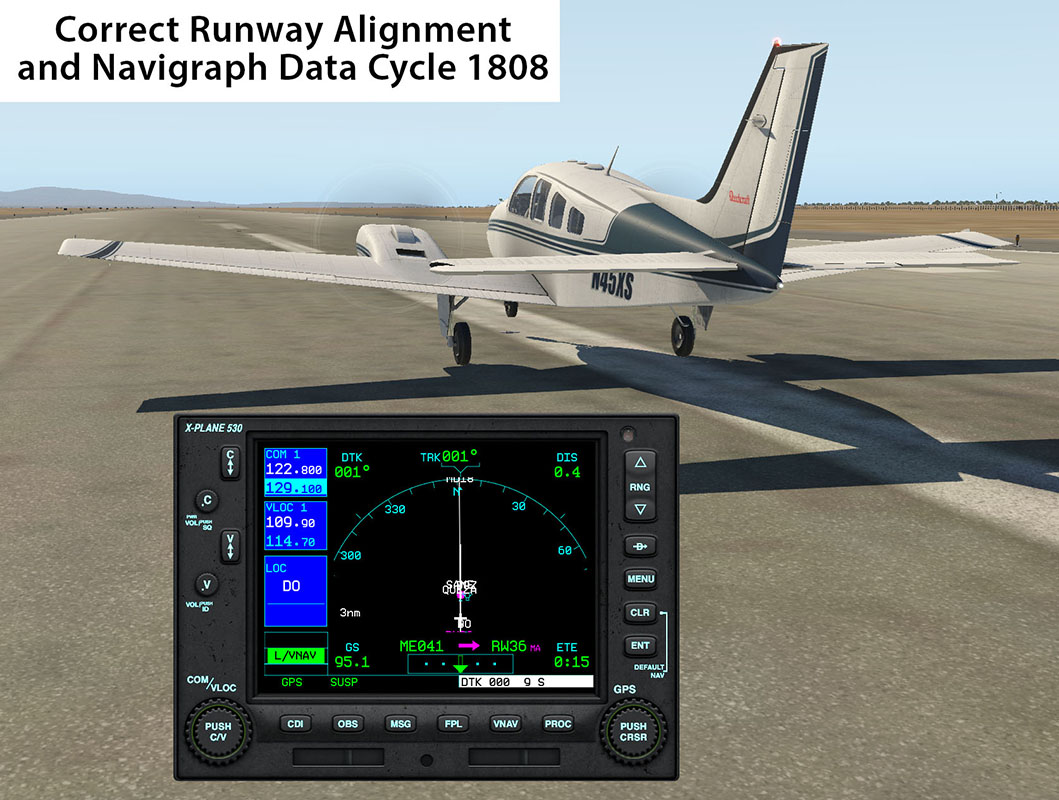

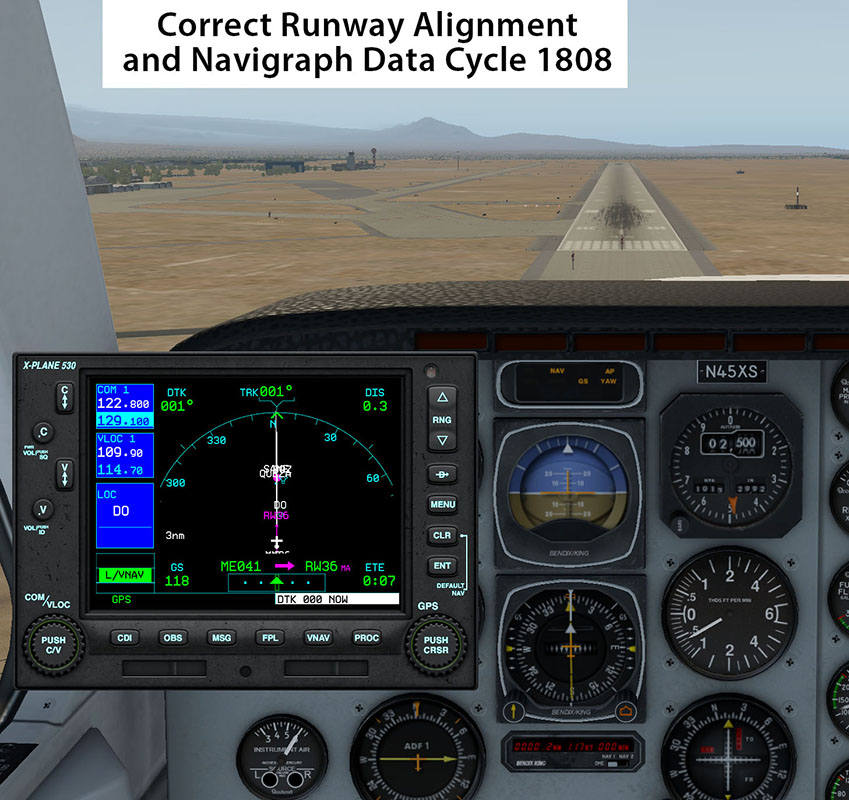

The default CIPF lack the RNP approaches to RW18 and RW36 at present available at the real airport. They are, though, included with current Navigraph cycle 1808 and flying the RNP RW36 to a runway aligned according to current real life coordinates results in a perfectly aligned approach as shown on pictures 03 and 04.
Argentina's AIP published runway coordinates for SAME are the following:
RW18
-32.81915556
-68.79268333
RW36
-32.84430278
-68.79305278

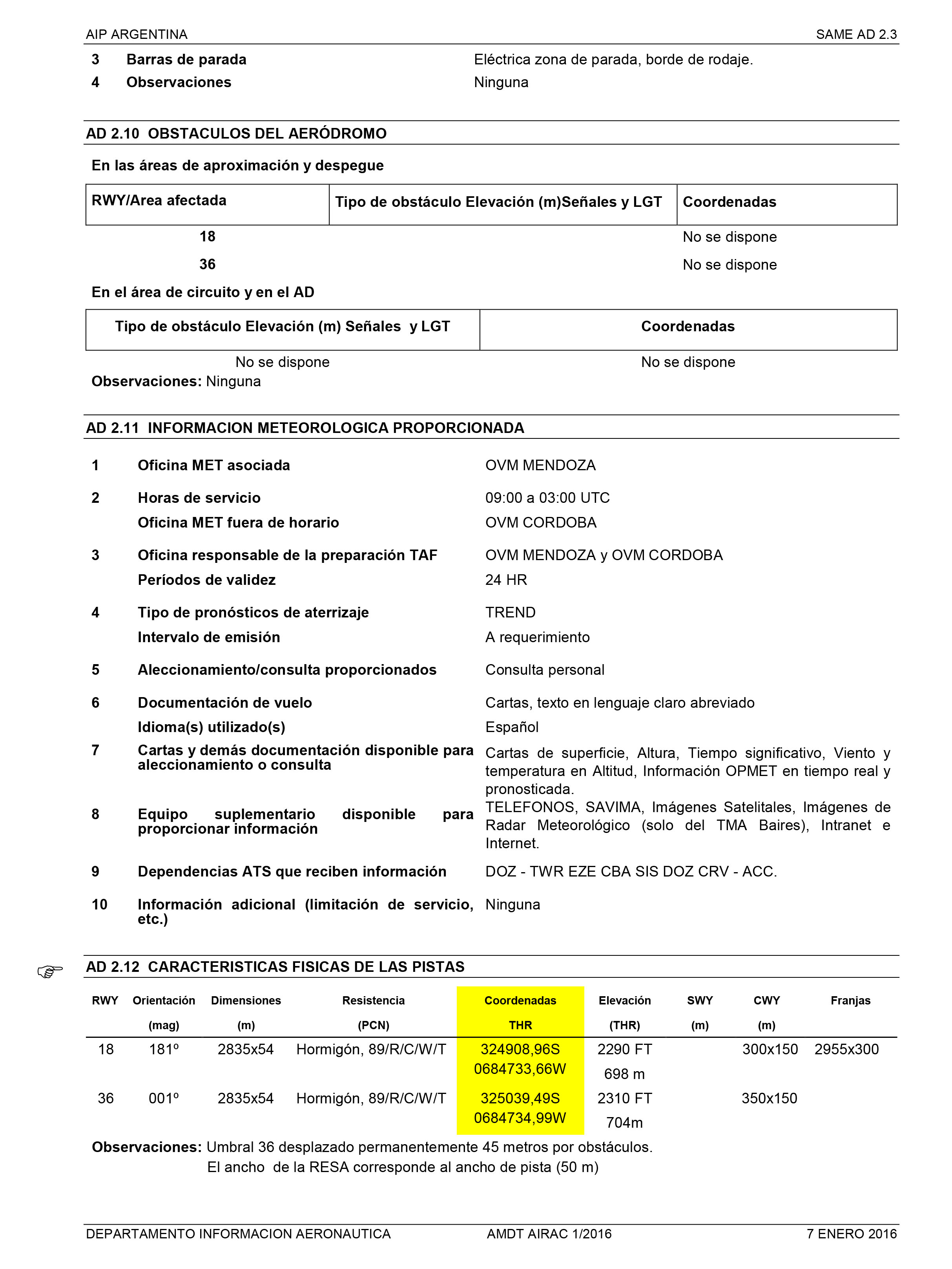

The corresponding page in that document is shown on picture 05 with runway coordinates highlighted by me.
Thank you very much.
Robin Peel August 1, 2018 6:04 PM
The existing airport layout at SAME is significantly misaligned with satellite imagery, though the ILS is pretty much correct. This airport needs rebuilding in the Scenery Gateway. If you have rebuilt the airport in its accurate location and alignment then why not fix the validation errors and upload it to the Scenery Gateway?
Robin Peel August 1, 2018 6:05 PM
Airport needs rebuilding on Scenery Gateway. ILS is correct.
