Jinnah Intl CAT 1 ILS offsets

Closed

Airport Metadata Issue

Reported by:
mskhan1991 on July 1, 2018 2:38 PM

Assigned to:
Robin Peel

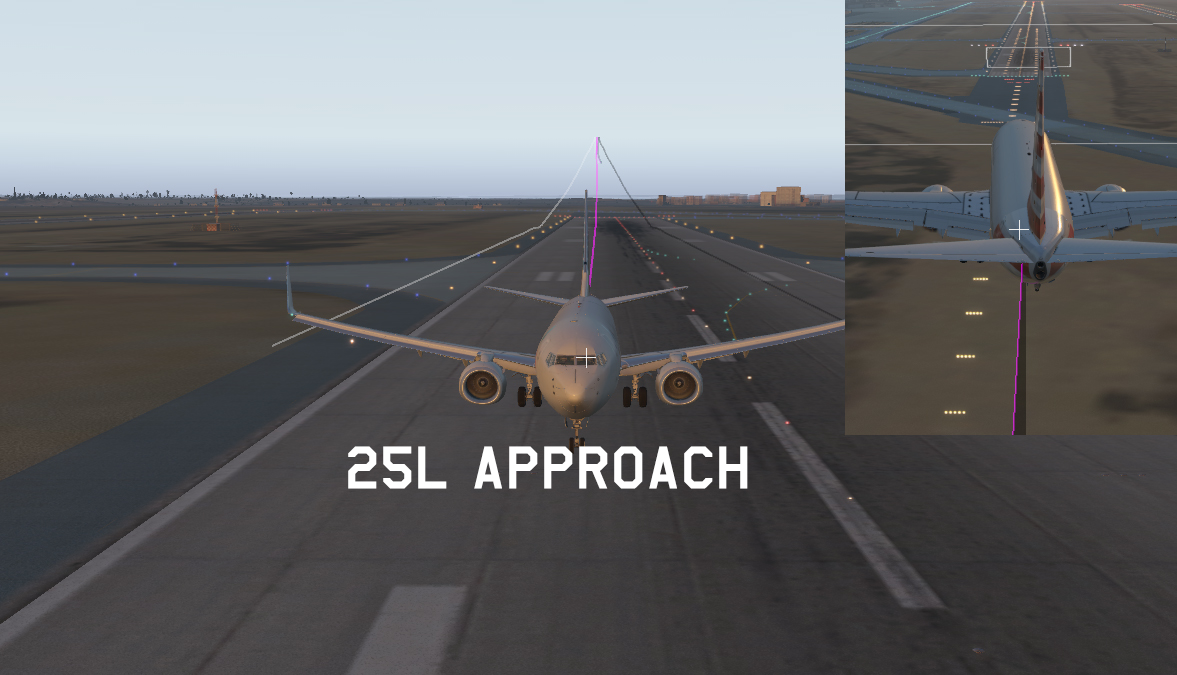

the approach on 25L is slightly offset (a few metres) to the right side when approaching 25L.

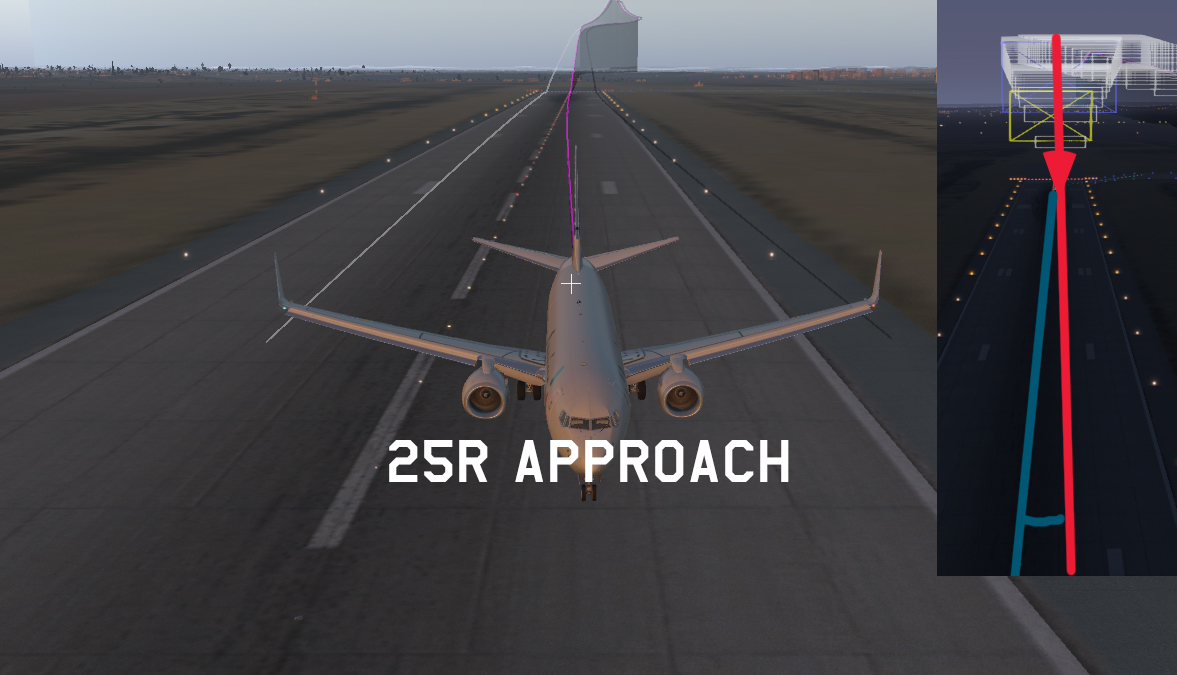

the approach on 25R is slightly angled to the left side when approaching 25R (Although the aircraft touches properly on the centerline)
The reference photos for scenery creation were used from google Earth. If you want you can msg me for more details. Intend to make a payware for this area.

  • mskhan1991 July 1, 2018 2:41 PM


    here is the second issue picture!

  • Robin Peel July 27, 2018 4:35 PM

    I have refined the positions and bearings of the localisers at OPKC, from GoogleEarth, but there still seem to be minor offsets from the runways included in the latest release of X-Plane. I do not know iff there are minor errors in the placements of the runways.

    Those ILS changes will be in the next release of X-Plane that includes new nav data.

    • Robin
Airport Identifier OPKC
